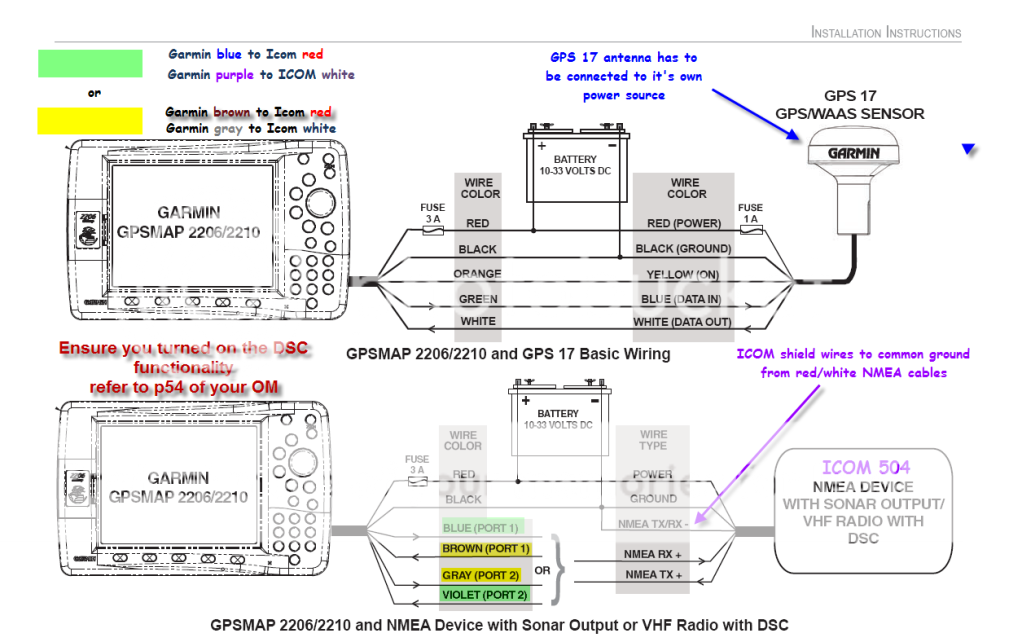

Garmin Nmea 0183 Wiring Diagram. This cable can be purchased from garmin.com or your local garmin ® dealer. Nmea 0183 connection guidelines | garmin customer support. 17.04.2019 17.04.2019 4 comments on garmin nmea 0183 wiring diagram. Item garmin wire function garmin wire color nmea 0183 device wire function ê power red power ë ground black data ground ì tx blue rx a í rx brown tx a installing the cables and connectors wiring to power 1 route the power cable from the swivel mount to the boat battery or fuse block.

Garmin Nmea 0183 Wiring Diagram Elegant Wiring Diagram Image From mainetreasurechest.com

Rp5 gm11 wiring diagram Renault scenic heater resistor wiring diagram Refrigerator start relay wiring diagram Reverse light switch wiring diagram

Garmin ais 800 software on your computer, page 1). Configuration commands are available to customize the operation mode and nmea 0183 output (see section 4.1 received nmea 0183 sentences) 1.3 features gps receiver tracks and uses multiple satellites for fast, accurate positioning and velocity estimates. You can connect up to three nmea 0183 compliant devices to receive data from one antenna. Connecting the wiring harness to power; This cable can be purchased from garmin.com or your local garmin ® dealer. • if it is necessary to extend the power and ground wires, you must use.52 mm 2 (20 awg) or larger wire.

The rst diagram on the next page is a sim ple diagram showing the gpsmap 3000 series.

Hello friends, this week i take y�all back to the inner workings of the navigation station. Refer to the wiring diagram of your nmea 0183 device for wire identification. Garmin nmea 0183 wiring diagram. Installing and connecting devices using the nmea 0183 interface standard. In the diagrams, tx = transmit, and rx = receive. Audio received from the hdmi ® input to the chartplotter is.

Source: trawlerforum.com

Hello friends, this week i take y�all back to the inner workings of the navigation station. • the wiring harness connects the device to power and nmea ® 0183 devices. Nmea ® 0183 compliant device. The following pages contain several wiring diagrams. The gps 17x nmea 0183 hvs must be connected to power.

Source: diagramweb.net

See appendix a for portable unit pinout and wiring information. Wiring harness nmea compliant device item garmin wire function garmin wire color nmea device wire function power red power ground black data ground nmea connection diagram nmea ® connection diagram. So, meet the standard horizon gx, a.k.a. Wln10 and wln30 both have nmea 0183 interface. The matrix ais, which is 38, ais nmea sentence output.

 Source: bbcboards.net

The following diagram illustrates the nmea wiring used to connect your vhf. (st yellow sign.) nmea ch1 in the matrix ais can be connected to a standard horizon cpfi chart plotter/sounder, however a nmea multiplexer is needed. Connecting the device to a transducer. See appendix a for portable unit pinout and wiring information. The use of a slide show permits showing you tube viewers the wiring necessary to realize all the safety features of digital selective calling (dsc) and your.

Source: svripple.blogspot.com

Nmea ® 0183 compliant device. • if it is necessary to extend the power and ground wires, you must use.52 mm 2 (20 awg) or larger wire. Item garmin wire function garmin wire color nmea 0183 device wire function ê power red power ë ground black data ground ì tx blue rx a í rx brown tx a installing the cables and connectors wiring to power 1 route the power cable from the swivel mount to the boat battery or fuse block. • the device has one internal nmea 0183 port that is used to connect to nmea 0183 compliant devices. The diagrams show how to correctly wire the antenna.

Source: thehulltruth.com

The gps 24xd can be connected to a garmin chartplotter or another nmea 0183 compliant device.for more information, go to garmin.com. The gps 17x nmea 0183 hvs must be connected to power. Use the diagrams to correctly wire the gps 17x. Connecting the device to a garmin marine radar; So, meet the standard horizon gx, a.k.a.

Source: schematron.org

Use the diagrams to correctly wire the gps 17x. Nmea 0183 bare wires to a garmin chartplotter as indicated in the wiring layout diagram on page 3. Connecting the device to a transducer; If any pieces are missing, contact your garmin® dealer immediately. Configuration commands are available to customize the operation mode and nmea 0183 output (see section 4.1 received nmea 0183 sentences) 1.3 features gps receiver tracks and uses multiple satellites for fast, accurate positioning and velocity estimates.

Source: thehulltruth.com

The gps 17x nmea 0183 hvs must be connected to power. When connecting nmea 0183 devices to ports containing two transmitting (tx) wires or two receiving (rx) wires. Use the diagrams to correctly wire the gps 17x. Nmea ® 0183 compliant device. Audio received from the hdmi ® input to the chartplotter is.

Source: mainetreasurechest.com

You can connect up to three nmea 0183 compliant devices to receive data from one antenna. Connecting the device to a transducer; Garmin echomap 50s wiring diagram how to wire my plus 63cv a tutorial on making basic nmea 0183 interfacing latest 40 43cv nmea0183 usb cruisers install and connect fishfinder gear user manual 93sv help connecting vhf chartplotter. Each port may have one or two transmitting wires, or one or two receiving wires. Wln10 and wln30 both have nmea 0183 interface.

Source: mainetreasurechest.com

After its testing and development were concluded, the us government began to allow civilians to use the system. Radar, sonar, and map sharing considerations Nmea 0183 bare wires to a garmin chartplotter as indicated in the wiring layout diagram on page 3. The use of a slide show permits showing you tube viewers the wiring necessary to realize all the safety features of digital selective calling (dsc) and your. This cable can be purchased from garmin.com or your local garmin ® dealer.

Source: peppiinapuoti.blogspot.com

You can connect the rca connector to the aux input of the stereo. Garmin ais 800 software on your computer, page 1). Connecting the device to a garmin marine radar; Connecting the wiring harness to power; When connecting nmea 0183 devices to ports containing two transmitting (tx) wires or two receiving (rx) wires.

Source: clubsearay.com

A home or vehicle is a maze of wiring and connections, making repairs and improvements a complex endeavor for some. • the wiring harness connects the device to power and nmea ® 0183 devices. Connecting the device to a transducer. Garmin echomap 50s wiring diagram how to wire my plus 63cv a tutorial on making basic nmea 0183 interfacing latest 40 43cv nmea0183 usb cruisers install and connect fishfinder gear user manual 93sv help connecting vhf chartplotter. • if it is necessary to extend the nmea 0183 or alarm.

Source: justanswer.com

The diagrams show how to correctly wire the antenna. The use of a slide show permits showing you tube viewers the wiring necessary to realize all the safety features of digital selective calling (dsc) and your. • if it is necessary to extend the power and ground wires, you must use.52 mm 2 (20 awg) or larger wire. After its testing and development were concluded, the us government began to allow civilians to use the system. Refer to the wiring diagram of your nmea 0183 device for wire identification.

Source: mainetreasurechest.com

The gps 17x nmea 0183 hvs must be connected to power. Connecting the device to an external garmin sounder module; The gps 24xd can be connected to a garmin chartplotter or another nmea 0183 compliant device.for more information, go to garmin.com. 3.4 nmea 2000 device connections 3.5 nmea 0183 device connections 3.6 status leds 3.7 connecting the device to a remote gps antenna 4 appendix 4.1 specifications. You can connect up to three nmea 0183 compliant devices to receive data from one antenna.

Source: peppiinapuoti.blogspot.com

This video was shot as a separate segment while i was building ou. The matrix ais, which is 38, ais nmea sentence output. Use 22 awg wire for extended runs of nmea wire, if needed. The antenna must be connected to power and to a nmea 0183 compliant device. Use 22 awg wire for extended runs of nmea 0183 wire, if needed.

Source: thehulltruth.com

Connecting the wiring harness to power; Standard horizon gx2100 nmea 0183 wiring diagram. If it is necessary to extend the power wires, use 16 awg or larger wire. This cable can be purchased from garmin.com or your local garmin ® dealer. To connect the wiring harness to a nmea 0183 device:

Source: wiringdiagram.2bitboer.com

Each port may have one or two transmitting wires, or one or two receiving wires. Connecting the device to a garmin marine radar; Configuration commands are available to customize the operation mode and nmea 0183 output (see section 4.1 received nmea 0183 sentences) 1.3 features gps receiver tracks and uses multiple satellites for fast, accurate positioning and velocity estimates. So, meet the standard horizon gx, a.k.a. This video was shot as a separate segment while i was building ou.

Source: japaneseclass.jp

In the program, select the static data tab. When connecting nmea 0183 devices to ports containing two transmitting (tx) wires or two receiving (rx) wires. The matrix ais, which is 38, ais nmea sentence output. I have attached the systems wiring diagram for my boat as it doesn�t make sense to me. Use 22 awg wire for extended runs of nmea wire, if needed.

 Source: thehulltruth.com

• the wiring harness connects the device to power and nmea ® 0183 devices. This cable can be purchased from garmin.com or your local garmin ® dealer. • if it is necessary to extend the nmea 0183 or alarm. When connecting nmea 0183 devices to ports containing two transmitting (tx) wires or two receiving (rx) wires. • the device has one internal nmea 0183 port that is used to connect to nmea 0183 compliant devices.
